This blog is about the tutorial for installing CatWrt on Proxmox VE (PVE) as a bypass gateway (bypass router).
This tutorial only considers a smooth home network that can connect to GitHub and download images online. If you have other uses, you can make adjustments on this blog.
- Soft routing (main routing mode), directly passing through or virtualizing the home network hosted by PVE.
- Offline installation, uploading the img via SFTP instead of downloading online.
This blog is modified from the previously published PVE tutorial, optimizing the boot steps.
Create Virtual Machine#

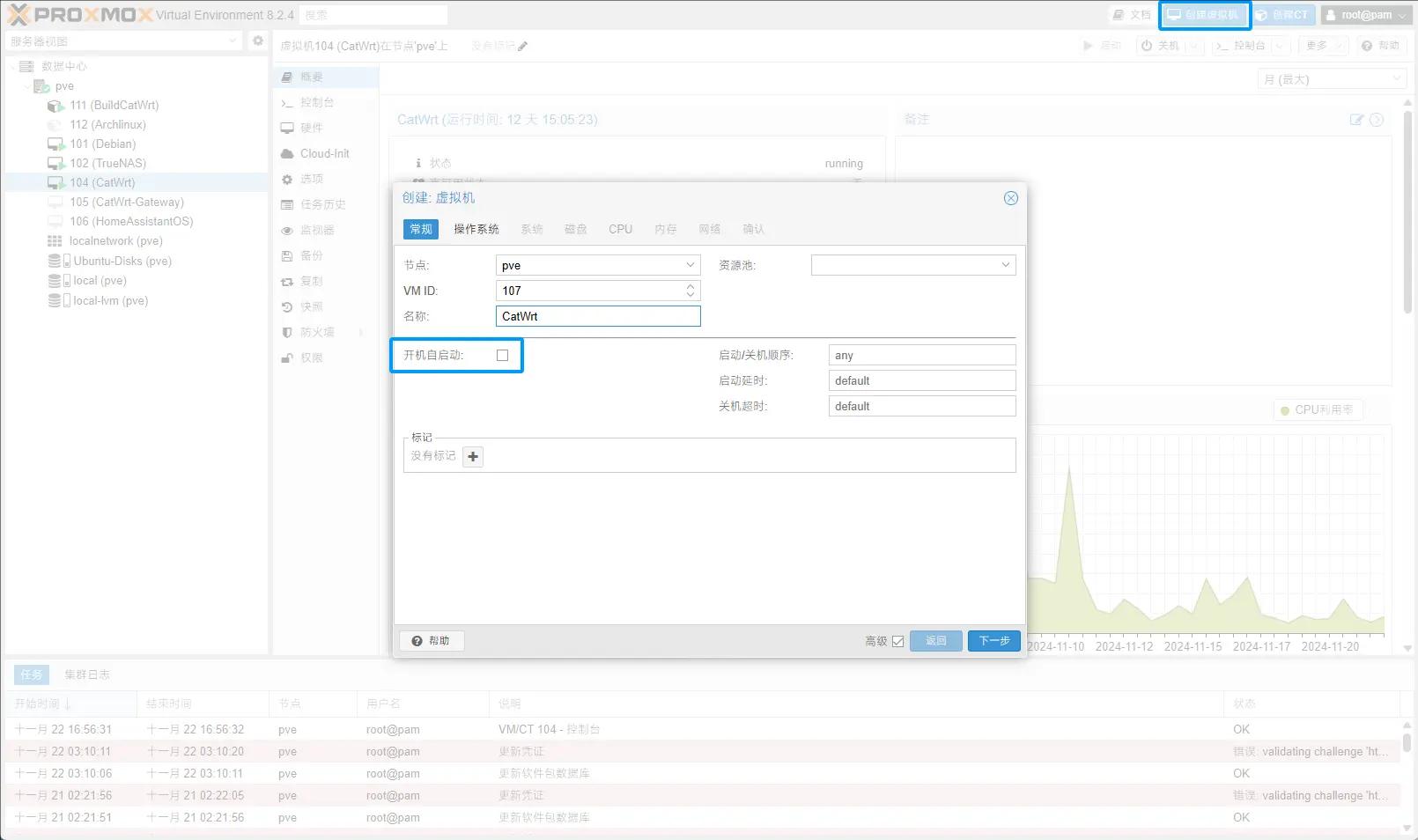

First, enter PVE and Create Virtual Machine. VM ID: I set it to 104 to match the device IP.
CatWrt default: 192.168.1.4, taking 4 as VM ID; name it CatWrt.
We also check Start at Boot, then proceed to the next step.
Operating System#
Here, select Do not use any media, choose Linux for the guest operating system, and keep the version as default, then proceed to the next step.
System#
For the BIOS options, choose either the default (SeaBIOS) or OVMF (UEFI) based on your preference, which will affect the version selected when adding the image later.
Here, we strongly recommend all users to use EFI firmware, and this blog follows that principle.
If you choose OVMF (UEFI), do not check Add EFI Disk. Be careful not to add it, or it will not boot.
For the graphics card, it is recommended to keep default or standard VGA, VMware compatible.
Keep the rest as default, then proceed to the next step.
Disk#
Here, delete the default disk; it will not delete any data, so feel free to delete it.
CPU#
Here, set the number of CPU cores based on your computer's situation. The category can remain default or be chosen based on your situation. To improve performance, select host and set the CPU weight to enhance scheduling responsiveness -> improve performance.
Memory#
Memory setting: It is recommended to set it to 1024.
If you need to run containers (docker), it is recommended to set it to 2048 or higher, depending on your needs. However, it is unlikely that anyone runs Docker inside PVE's OpenWrt.
Checking the Ballooning device will make memory changes dynamically allocated. If you need to use memory monitoring software (like htop, pcdn memory detection), it is not recommended to check this. Some software may experience memory leaks due to being unable to determine memory size.
Network#
Here, we do not consider the WAN port since this is a bypass tutorial.
If you need to add a WAN port, you need to perform passthrough or add a virtual network port after completing the creation of the virtual machine window.
The first interface of CatWrt is set to LAN by default, and the second interface is set to WAN by default, so be cautious here to avoid configuration difficulties due to incorrect interface order!
Confirmation#
After completing the creation of the virtual machine window, you can add a second network port or perform other operations, such as adding a new mounted hard disk or expanding the image hard disk.
After completing the configuration, add the second network port.

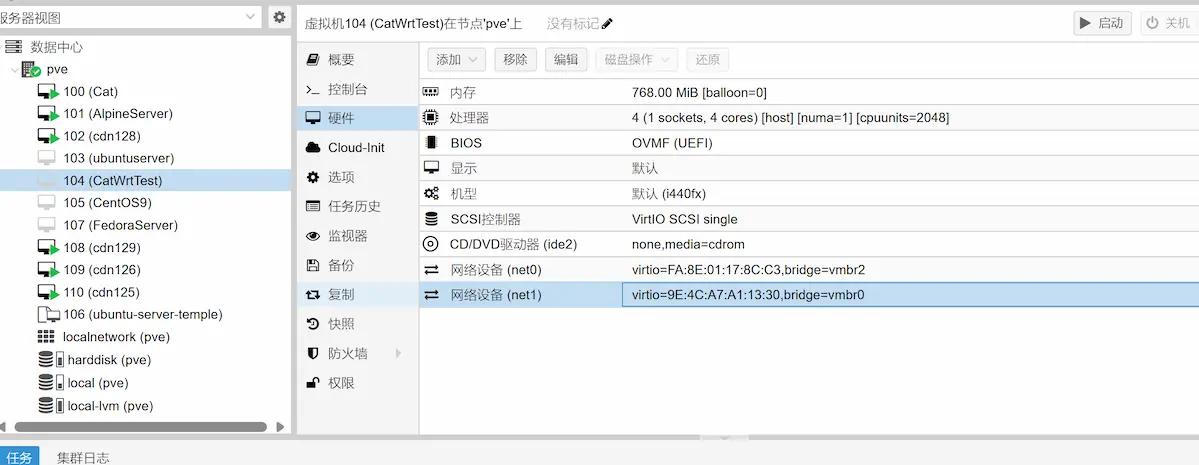

Find the device you just created, click on it, select hardware, add -> network device -> choose another interface (WAN).
Download and Convert Image#
Most OpenWrt x86 provide .img format disk images or corresponding packaged compressed files. Here, you need to choose BIOS or EFI when setting to select the corresponding system.
For example, if I previously chose OVMF (EFI), I should download the EFI image. If I choose SeaBIOS, I should download the image without EFI.
This blog previously created OVMF (EFI), so this demonstration will use EFI.
Download link: Releases · miaoermua/CatWrt (github.com)

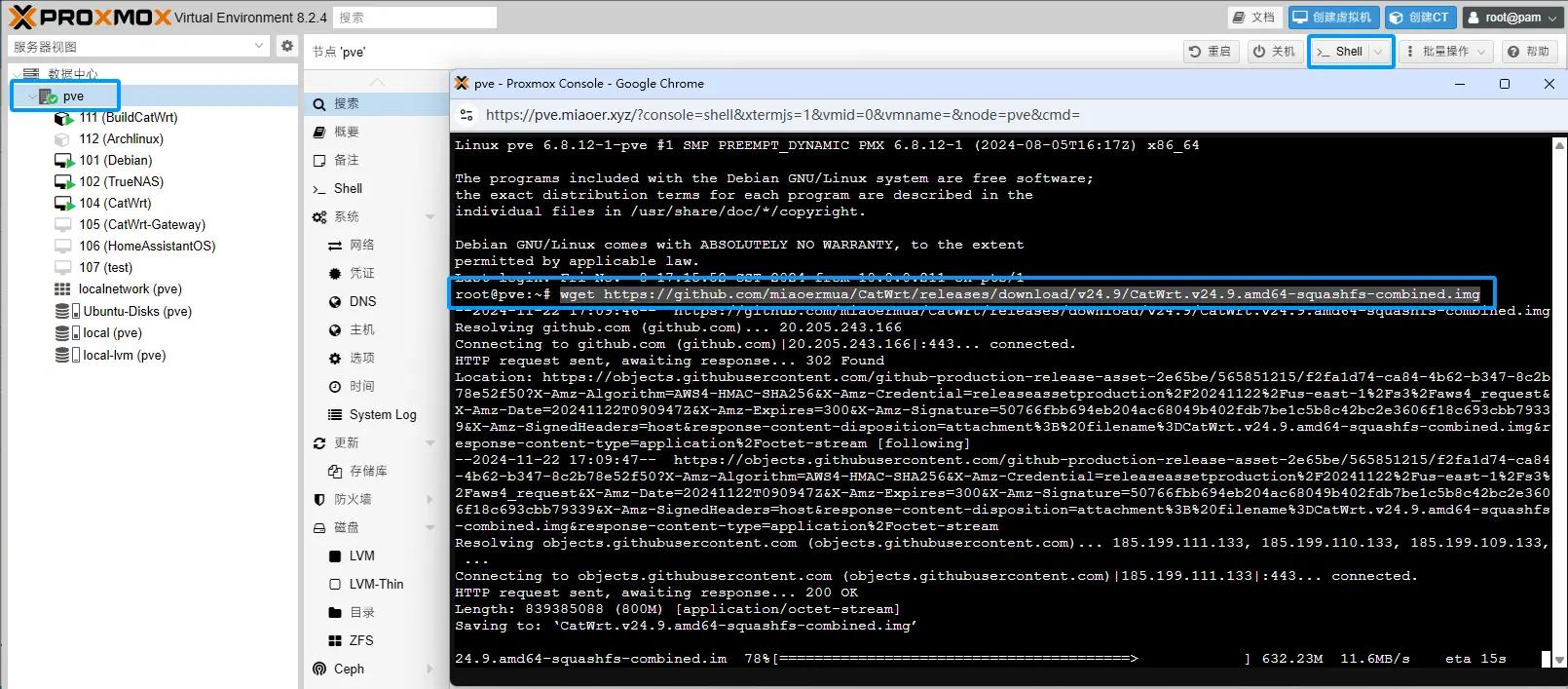

Use SSH to connect to the PVE host, or in the Shell of the web interface.
Download the image and import it into the virtual disk,
wget https://github.com/miaoermua/CatWrt/releases/download/v24.9/CatWrt.v24.9.amd64-squashfs-combined.img
qm importdisk 104 ./CatWrt.v24.9.amd64-squashfs-combined.img local
qm importdisk is the command; 104 is the virtual machine ID.
./CatWrt.v24.9.amd64-squashfs-combined.img is the image path.
Here, local is your storage pool. If you prefer local-lvm, you need to add it yourself; this blog just stores it in local.
If uploaded via the browser, it will be under /var/lib/vz/template/iso/xxx.img.
After successful import, it shows successful.
Successfully imported disk as 'unused0:local-lvm:vm-104-disk-0'
root@pve:~#
The complete output result is as follows:
Linux pve 6.8.12-1-pve #1 SMP PREEMPT_DYNAMIC PMX 6.8.12-1 (2024-08-05T16:17Z) x86_64
The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Fri Nov 8 17:15:52 CST 2024 from 10.0.0.211 on pts/1
root@pve:~# wget https://github.com/miaoermua/CatWrt/releases/download/v24.9/CatWrt.v24.9.amd64-squashfs-combined.img
--2024-11-22 17:09:46-- https://github.com/miaoermua/CatWrt/releases/download/v24.9/CatWrt.v24.9.amd64-squashfs-combined.img
Resolving github.com (github.com)... 20.205.243.166
Connecting to github.com (github.com)|20.205.243.166|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/565851215/f2fa1d74-ca84-4b62-b347-8c2b78e52f50?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20241122%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20241122T090947Z&X-Amz-Expires=300&X-Amz-Signature=50766fbb694eb204ac68049b402fdb7be1c5b8c42bc2e3606f18c693cbb79339&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3DCatWrt.v24.9.amd64-squashfs-combined.img&response-content-type=application%2Foctet-stream [following]
--2024-11-22 17:09:47-- https://objects.githubusercontent.com/github-production-release-asset-2e65be/565851215/f2fa1d74-ca84-4b62-b347-8c2b78e52f50?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20241122%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20241122T090947Z&X-Amz-Expires=300&X-Amz-Signature=50766fbb694eb204ac68049b402fdb7be1c5b8c42bc2e3606f18c693cbb79339&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3DCatWrt.v24.9.amd64-squashfs-combined.img&response-content-type=application%2Foctet-stream
Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.111.133, 185.199.110.133, 185.199.109.133, ...
Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 839385088 (800M) [application/octet-stream]
Saving to: ‘CatWrt.v24.9.amd64-squashfs-combined.img’
CatWrt.v24.9.amd64-squashfs-com 100%[====================================================>] 800.50M 13.1MB/s in 70s
2024-11-22 17:10:58 (11.4 MB/s) - ‘CatWrt.v24.9.amd64-squashfs-combined.img’ saved [839385088/839385088]
root@pve:~# qm importdisk 104 ./CatWrt.v24.9.amd64-squashfs-combined.img local
importing disk './CatWrt.v24.9.amd64-squashfs-combined.img' to VM 104 ...
Formatting '/var/lib/vz/images/104/vm-104-disk-1.raw', fmt=raw size=839385088 preallocation=off
transferred 0.0 B of 800.5 MiB (0.00%)
transferred 10.0 MiB of 800.5 MiB (1.25%)
......
transferred 790.0 MiB of 800.5 MiB (98.69%)
transferred 800.0 MiB of 800.5 MiB (99.94%)
transferred 800.5 MiB of 800.5 MiB (100.00%)
transferred 800.5 MiB of 800.5 MiB (100.00%)
Successfully imported disk as 'unused0:local:104/vm-104-disk-1.raw'
Import Disk#
Next, follow the steps below to import the disk.
After completion, start it.

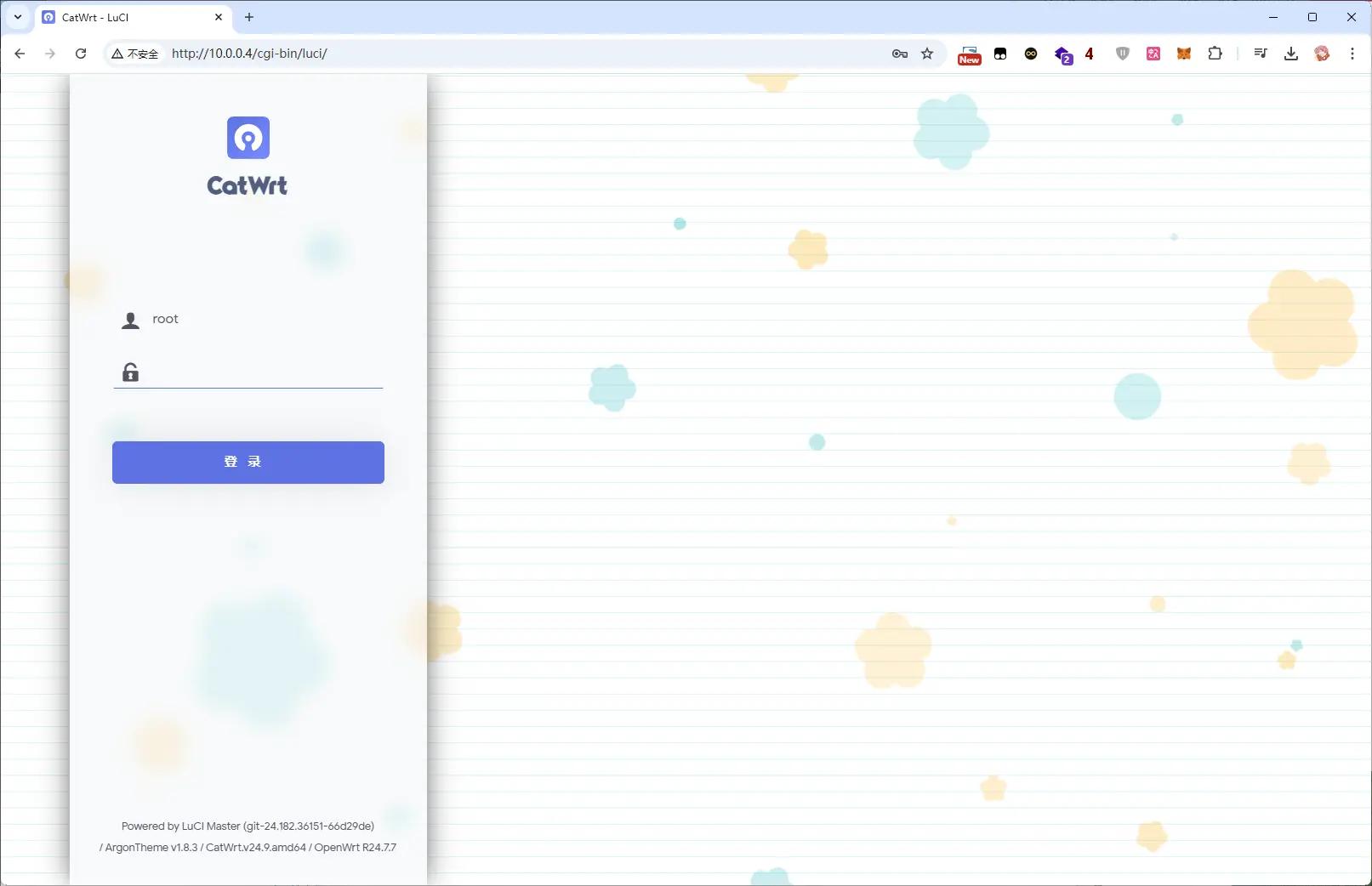

Connect via Ethernet to a switch bridged with vmbr0, enter 192.168.1.4 in the browser to proceed with subsequent dialing, DHCP, and higher port information configuration.
Note: This 10.0.0.4 is a screenshot after CatWrt configuration is complete, not the default 10.0.0.4 network configuration.
Username root, password password.
::: warning
If your network is not 192.168.1.0/24, for example, 192.168.1.4, please continue to complete the steps!
:::
Change IP#
Enter the Console of CatWrt in PVE, and you will successfully enter VNC.
Press Enter a few times in VNC until you see root@CatWrt:~#, then type cattools. Since it is not connected to the network, the connection will fail, and you cannot proceed with the update. Do not interrupt the update with ctrl+c; wait for the update to fail three times to enter Cattools.
Select option 1 to change the IP.
To operate, enter the desired IP address, and after execution, the network part will restart without needing to restart CatWrt to configure in the background. For example:
Please enter the IP Addr and press Enter /// 请输入 IP (默认为 192.168.1.4): 10.0.0.4
After pressing Enter, it will run the code again, indicating that the modification was successful and the network port has restarted, allowing you to connect using the modified IP.
Alternatively, you can modify it using
vi /etc/config/network&nano /etc/config/network.
Configure CatWrt Network#
Here, you only need to do the ##Change Password and ##Lan - DHCP sections from the blog below. After modification, restart CatWrt to use it.
Note that the IP address must match the Synology's subnet. For example, if Synology is 192.168.1.2, CatWrt should be set to an address in 1.x, such as 192.168.1.4.
This blog is based on the user experience plan provided by a senior from Jiangxi University of Science and Technology for CatWrt. The original text: PVE Deployment of CatWrt (OpenWrt) | Enjoy your life | AEnjoy’s Blog
